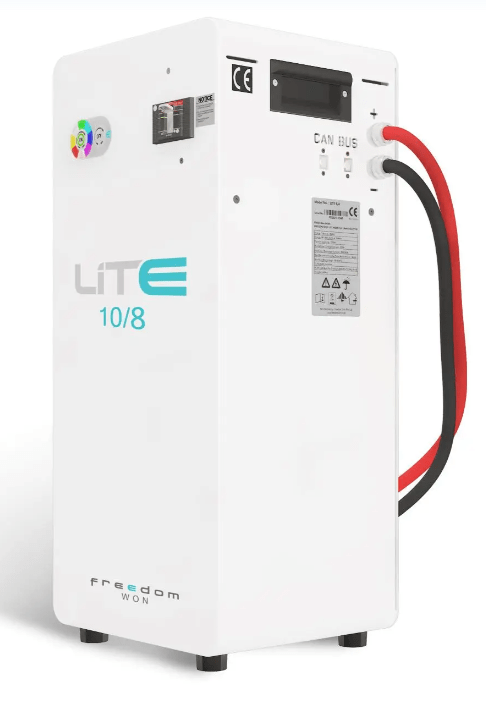

Freedom Won Lite 2 Home 10/8 LiFePO4 Battery B-version

The Freedom Won Lite Home LiFePO4 battery is the perfect high quality battery for all your residential and industrial solar solutions.

Technical Data:

• Total Energy Capacity: 10kWh
• Energy available at 80% DOD: 8kWh
• Energy available at 90% DOD: 9kWh
• Current Capacity: 200Ah
• Nominal Voltage: 52V to suit 48V Inverters, Min 47V, Max 56V
• Continuous Charge & Discharge Rate: 1C = 200A
• Service Life: > 5500 cycles @ 80% DOD (Depth of Discharge)
• Weight: 89kg
• Dimensions: 745 x 340 x 290 mm
• Enclosure: Aluminium, powder coated white front, rated for indoor use
• DC Connection: 50mm^2 cable x 1.8m
• Control Interface: RJ45 Socket x 2: CAN Bus for interfacing with compatible inverters and system controllers, Communication for connection of parallel batteries. (NOTE: All parallel batteries must be all of the same model)
• Protection: Shunt trip circuit breaker, Overcurrent, Under voltage, Over Voltage, Temperature
• Human Interface: State of Charge (0 to 100%), Error light, Error reset button, USB plug for programming

Features:

• This battery is compatible with most inverters on the market
• These batteries can be expanded up to 20 batteries in parallel
• 10-year local manufacturer’s warranty
•  Support high discharge and charge power
•  Batteries can be charged in shorter time due to high charge capability

All LiTE 2 batteries must be registered to qualify for the warranty. Registration must be completed within 60 days of purchase to keep the warranty valid.

Downloads:

• CE Declaration of conformity
• Safety Transport & Handling Documentation
• UN38.3 Conformity Test
• Inverter Compatibility List
• Warranty
• Installation Manual: 6a000d445eFreedom_Won_LiTE_2_Home_and_Business_range_installation_Manual_v1
• Data sheet: 1005a6cacdb45aFW_LiTE_2_Home_10_8_52V_B__1_
