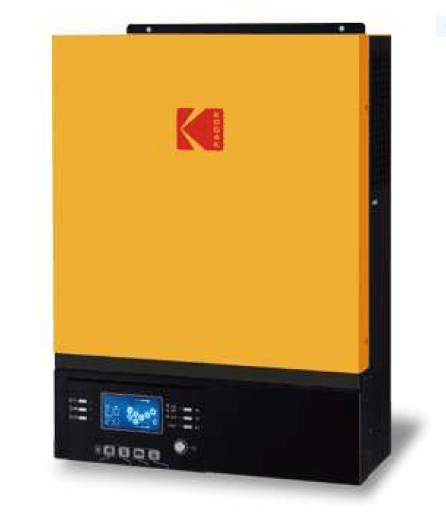

Kodak OG 3.24 3kW VMIII 24V Offgrid Inverter

Kodak OG 3.24 3kW 24V Offgrid Inverter

Removable LCD control module with multiple communications servers and ATM. Built in Bluetooth for mobile monitoring with reserved communications port for BMS (RS 485). Supply load from Grid or PV even if battery is not available. Configurable AC/PV output usage timer and prioritization. Selectable high power charging current. Compatible to utility mains  or generator input. Auto restart while AC is recovering and cold start function.

• Pure sine wave inverter
• Rate power: 3000 W
• Input voltage: 230 VAC
• Selectable input voltage range: 170-280 VAC(For personal computers); 90-280 VAC (Home appliances)
• Frequency range: 50/60 Hz (Auto sensing)
• Output voltage regulation (Batt. Mode): 230 VAC +/- 5%
• Surge Power: 6000 VA
• Efficiency peak: 90% – 93%
• Battery Nominal Voltage: 24 VDC
• Solar charger type: MPPT
• Maximum PV array power: 4000 W
• MPP range @ operating voltage: 120 VDC – 430 VDC
• Max PV Array open circuit voltage: 500 VDC
• Max Solar charge current: 80 A
• Max AC charge current: 60 A
• Max current charge: 80 A
• Kodak OG 3.24 – 5.48 Off Grid Inverter DS
• OG Installation Manual
