Description

JA Solar 144 cell 550w Mono PV Module

Cells: 144 Cells (6 x 24)
Type: Mono PERC
Dimensions: 2279 x 1134 x 30 mm
Weight: 28.6kg
Max. load: 3600 Pa
Junction Box: IP68 rated, 3 diodes
Frame: Silver
Connection: MC4-EVO/QC 4.10-35/45

Electrical Characteristics

• Nominal Output (Pmax): 550 W
• Voltage at Pmax (Vmp): 41.96 V
• Current at Pmax (Imp): 13.11 A
• Open Circuit Voltage (Voc): 49.90 V
• Short Circuit Voltage (Isc):  14.00 A
• Max. system voltage: 1500 VDC
• Max. series fuse rating: 25 A
• Module efficiency: 21.3 %

Features:

• High output power
• Less shading effect
• Lower temperature coefficient
• Better mechanical loading tolerance
• Efficiency of 21.3%
• Power output temperature coefficient: -0.350%
• Silver frame with white backsheet

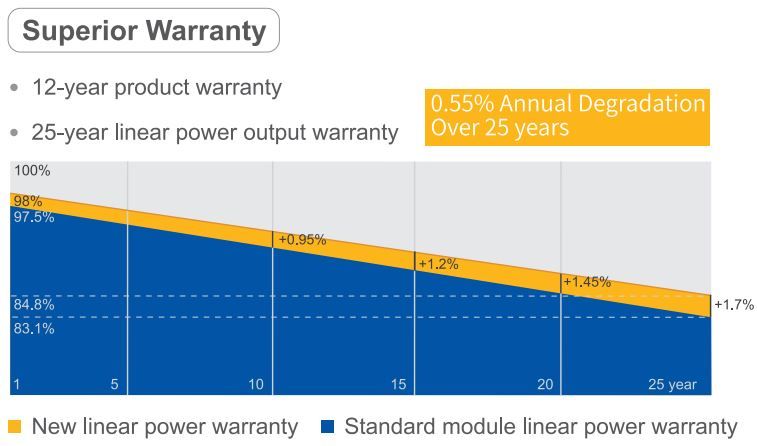

• 12 Year product warranty and 25 year linear power output warranty.

Downloads:

Datasheet: JAM72S30 525-550MR-1
